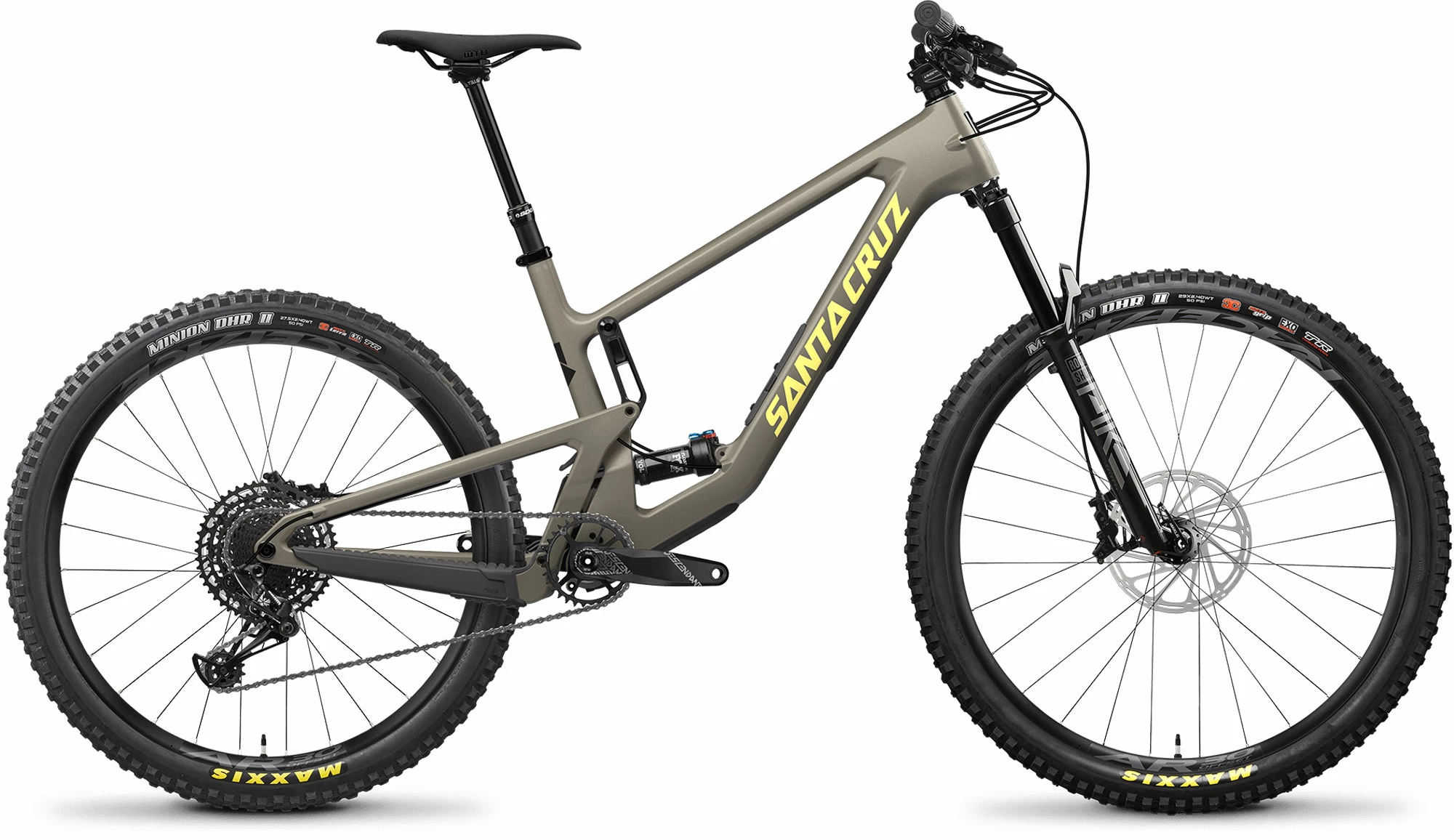

Santa Cruz 5010 5 MX C R

The 5010 MX C R is not just « the little bike » from Santa Cruz. It makes even the most mundane trails feel like they’re loaded with features to hop, skip and jump over. It’s like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

---

The Santa Cruz 5010 C R in detail

Mixed Wheels
The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5″ rear wheel allows for quick back wheel steering and lifting.

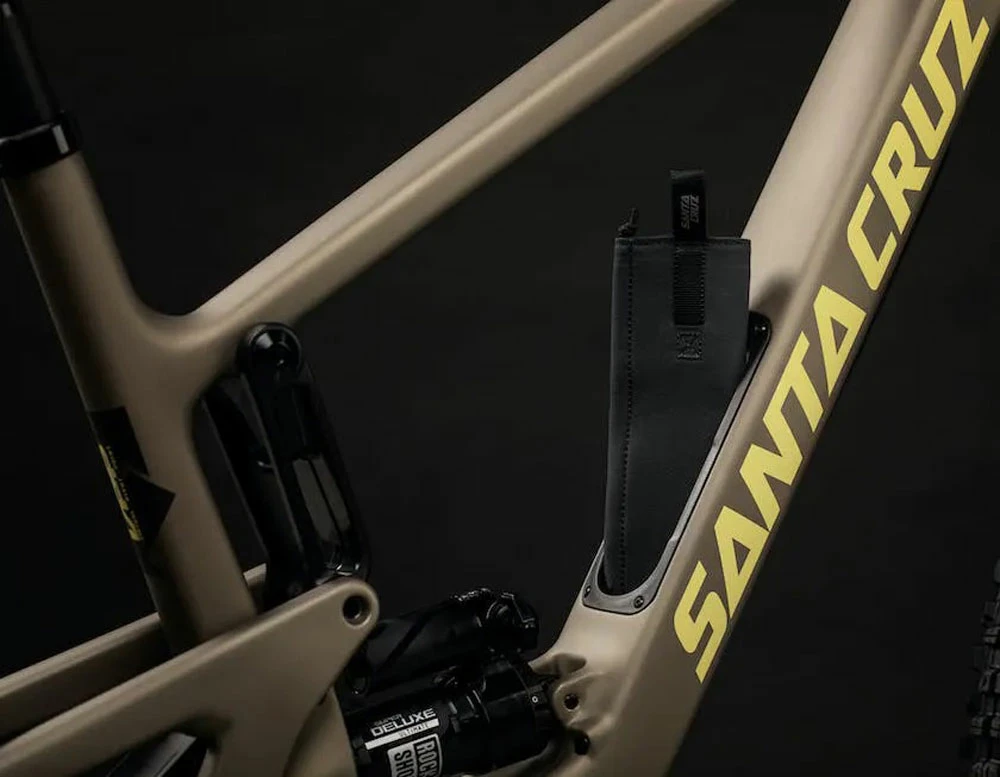

Glovebox
Place your ride essentials securely beneath a new high-quality latch and panel in the 5010’s downtube. The Glovebox comes with a fitted Tool Wallet and Tube Purse, tailored for the frame to keep your tools close to hand.

C Carbon
C Carbon frames use the very best materials and production processes available. Santa Cruz tailor stiffness for every size to make sure everyone gets the same ride quality. Bigger riders means greater stresses on larger frames, but that’s remedied with the size-specific frame stiffness tunes.

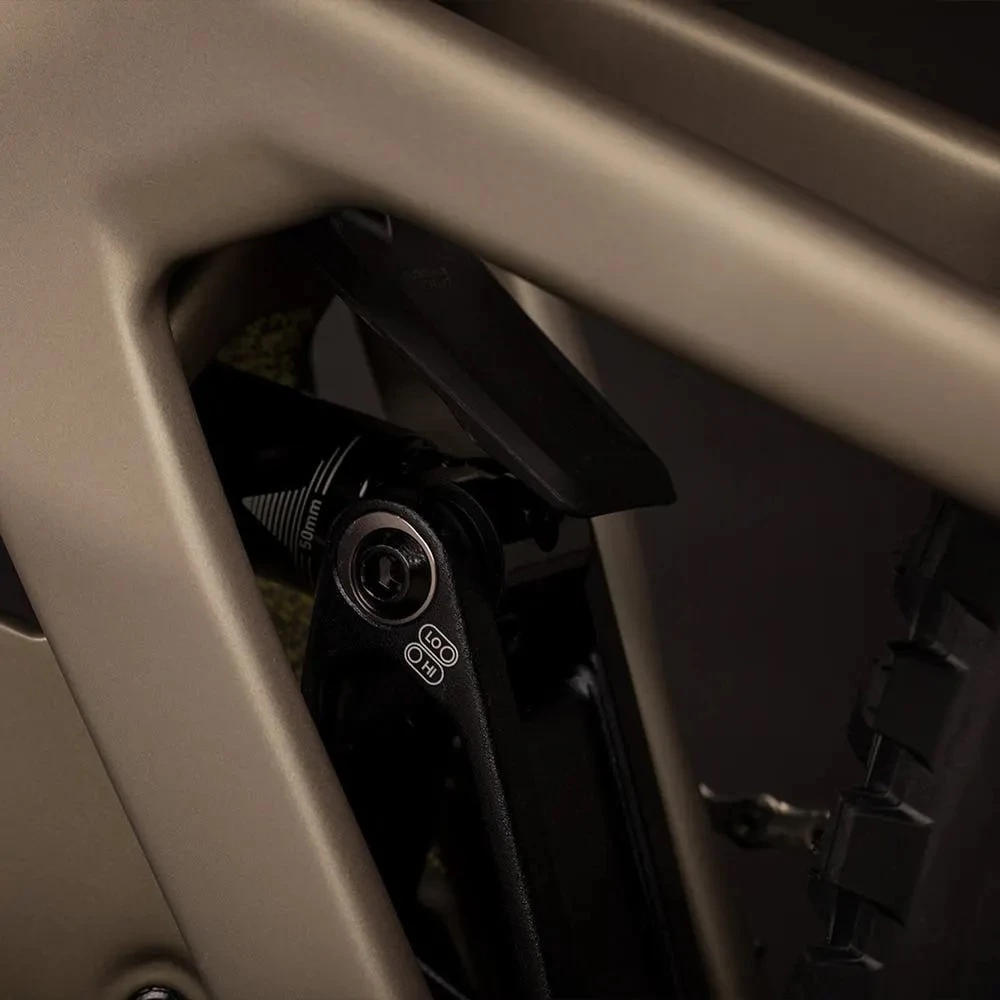

Sag window
A window allows easier suspension sag and setup. The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

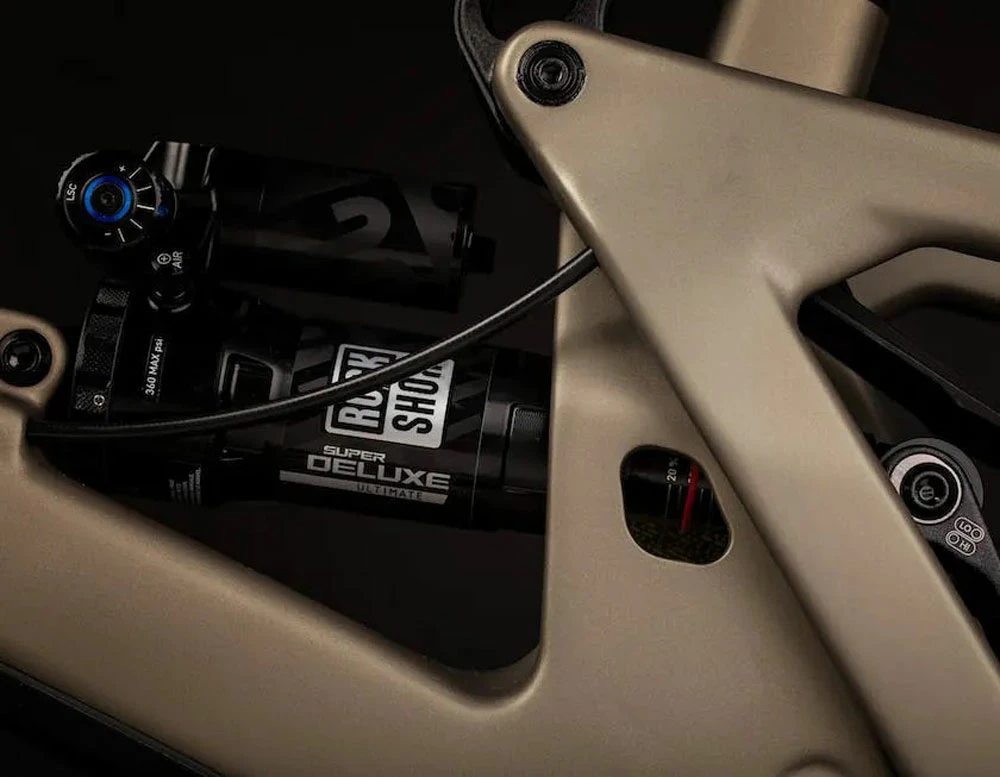

Support and playfulness
Santa Cruz gave the 5010 a very straight, highly progressive leverage curve to give the rider plenty of predictable support, bottom-out resistance, and playful response. This means the travel is accessible and higher impacts aren’t as jarring as you’d expect from a short-travel bike.

Traction and big hits
For 5010, Santa Cruz wanted to find the balance of support and grip to maximize the bike’s descending and big-hitting capability. They started with a significantly less anti-squat (than previous generation 5010) to provide sensitive, ground-tracking qualities and reduced pedal kick.

130mm VPP™ Federweg
Some call it short travel, others call it all the travel you’ll need. This much travel isn’t going to help shrug off the biggest, fastest rock gardens like a V10 downhill race bike, but it’s going to feel like you’ve got a V10 under the hood of your motor when it comes to freeway freestyling miles.

VVP™
VPP™ suspension can be optimized to strike the right balance between pedaling efficiency and all-out bump chomping prowess. That means wherever you see « VPP™ » you know it’s tuned to perform exactly how it should for the purpose it’s designed for.

---

Lifetime Frame Warranty

Santa Cruz Bicycles will repair or replace at its option any frame made by Santa Cruz Bicycles it determines to be defective in materials or workmanship. The warranty will be in effect for the lifetime of the frame and is available only to the original owner. Notwithstanding the foregoing, frames purchased prior to May 1, 2015 are covered under the previously-existing warranty for five years from the original date of purchase. In the event of a non-warranty situation, Santa Cruz Bicycles will make replacement parts available to the original owner at a reduced charge for the applicable warranty period described above.*

---

Technology

Proportional Chainstay Lengths
The 5010’s chainstay length is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.

27.5 Wheels
27.5 is the fun-sized wheel size. This wheel size makes a bike feel fleet-footed (or quick fingered) whether launching logs or weaving through stumps.

The Right Fit
Five sizes, low standover, slack head angle, low BB, and 140/130mm travel. It’s the kind of bike that allows you to get creative with your surroundings.

Santa Cruz carbon frame
We don’t just use carbon to build bikes because it looks cool and everyone is doing it. We pioneer advanced materials and production methods to build the most durable and high-performance bicycles because it’s the way to ensure that riders can just enjoy riding their bike. Our experience with carbon production allows us to build bikes that are extremely reliable.

We design, test and prototype our carbon technology in Santa Cruz, CA. Our carbon lab gives us the capacity to research carbon layup optimization that we can apply to our production frames, and research and test new manufacturing processes and techniques. Our production bikes are strong as hell, and we feel we have a good handle on our toolbox of materials, but having the carbon facility in the same building as the engineers allows us to push our understanding forward, and take advantage of emerging materials technology.

Our frames are manufactured in our exclusive factory (Skybox). We founded this manufacturing facility ourselves because we wanted to be able to control how our designs were produced, to ensure quality control, and to make sure the advancements we design remain proprietary to us (we’re not being selfish, it just sucks when someone peers over your shoulder to get the answer you’ve worked hard to figure out). What’s more, if something needs improving, we have the capacity and capability to change it, before it gets into your hands.

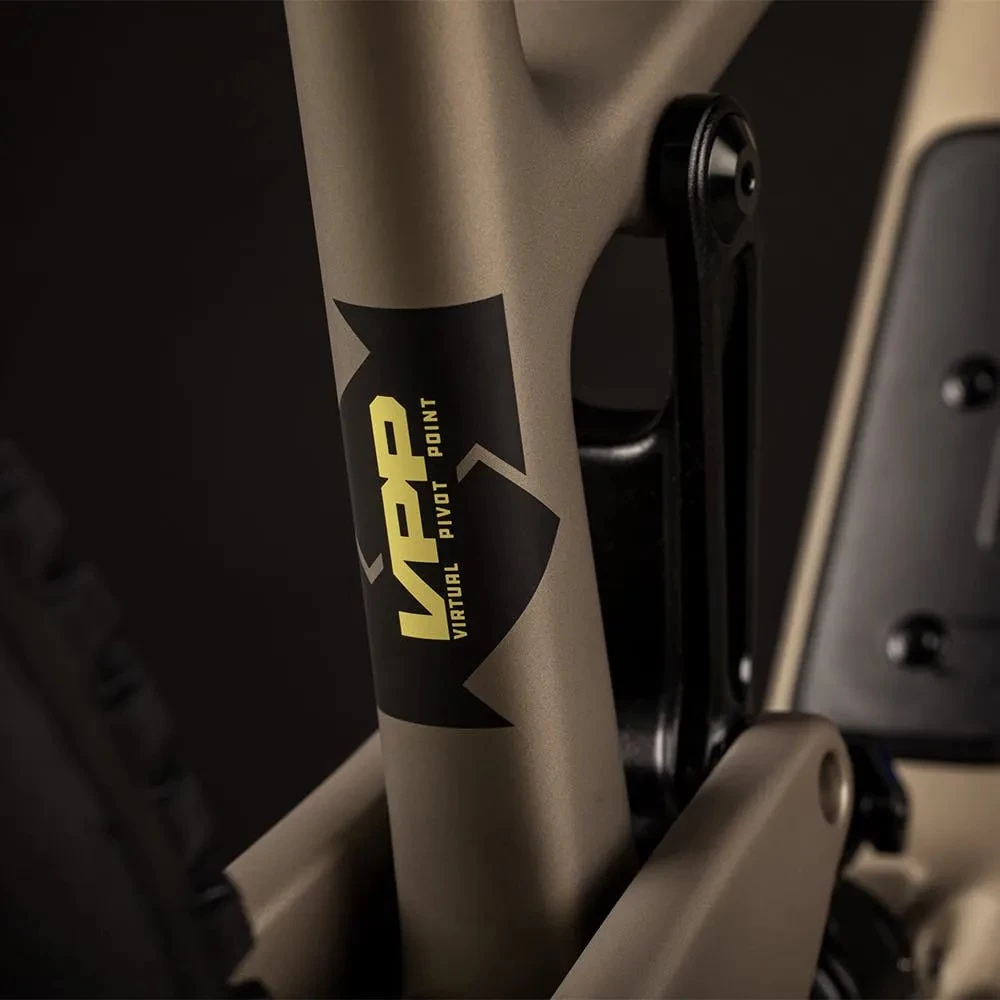

Santa Cruz Virtual Pivot Point (VPP®) Suspension Design

We’ve been using VPP® suspension since 2001. Rather than contracting a series of kooky inventors to try to build ever more complex and wack-a-doo suspension designs or proprietary shocks so the Marketing department has something to talk about, we’ve stuck with what is an extremely versatile and high-performance mechanism. VPP® is designed to work with the best available technology from suspension manufacturers that will be supported long-term. It doesn’t require novelty shocks and hardware that offers dubious long-term support.

VPP® can be optimized to strike the right balance between pedaling efficiency and all-out bump chomping prowess. The suspension on our cross-country bikes is tuned so that every ounce of energy a rider can generate is transferred to the forward trajectory. And our bigger-hitting, longer travel bikes are exceptionally capable of isolating impacts from the rider so they can ride harder with more confidence in the very worst terrain. Short counter-rotating links connect the front and rear triangles to create an extremely robust chassis. Simple linkages contain the pivot points to prevent slop from developing over time; grease ports make it serviceable; pivots run on large diameter axles and bearings, which we offer free lifetime replacement for.

Eagle-eyed riders may have noticed that we have two styles of the VPP® design now. The lower-link mounted shock configuration gives a very progressive rate with excellent small bump, mid-stroke support and great bottom out resistance. Ideal for bikes that are designed for challenging terrain. The upper-link mounted shock style that we use on other trail bikes gives more pedal platform, ideal for bikes that require maximum support and good bottom-out resistance to make them snappy handling, pedal-efficient flyers. Having control over a versatile design like this allows us to tune the suspension to the characteristics we most want for each application.

---

Recommended frame size

• XS: 142 – 155 cm
• S: 155 – 165 cm
• M: 165 – 175 cm
• L: 175 – 185 cm
• XL: 183 – 193 cm

---

Please note that pedals are not included!

---

Factory Settings: Santa Cruz 5010 – info on all the tech and features.

---
