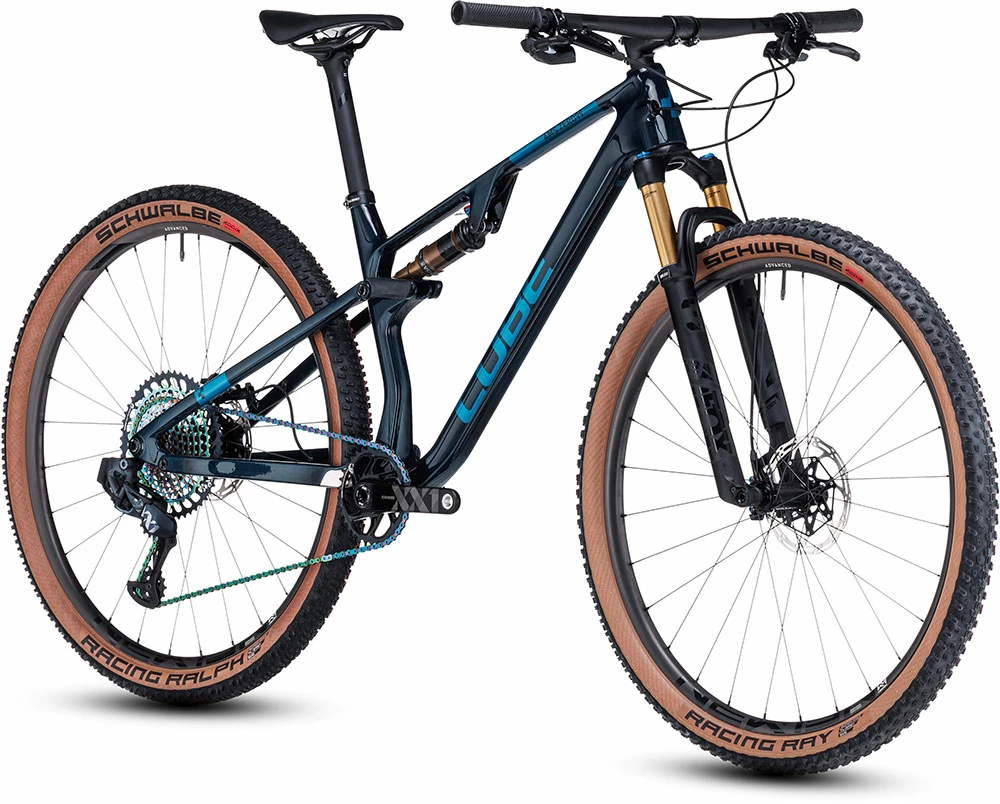

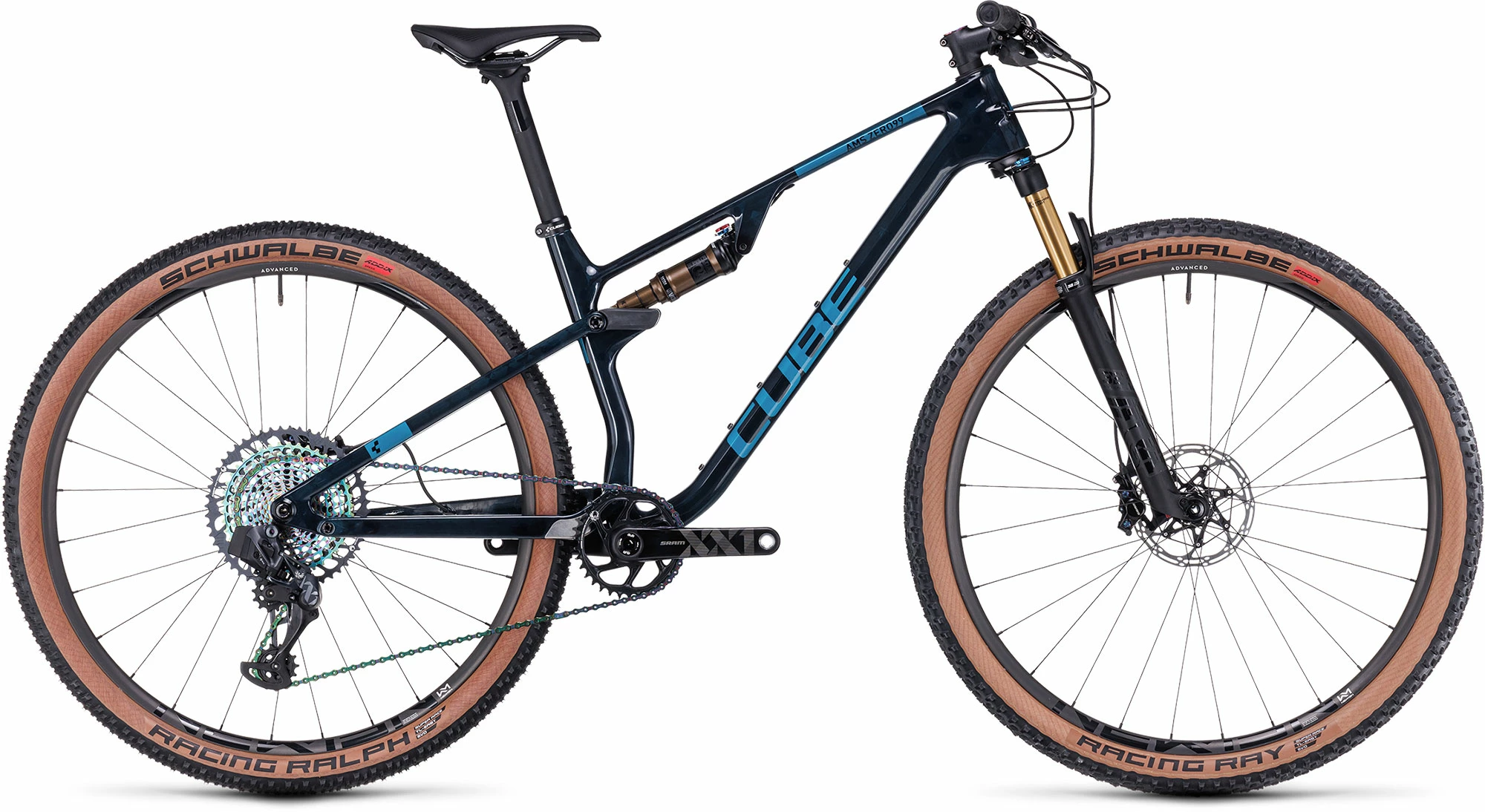

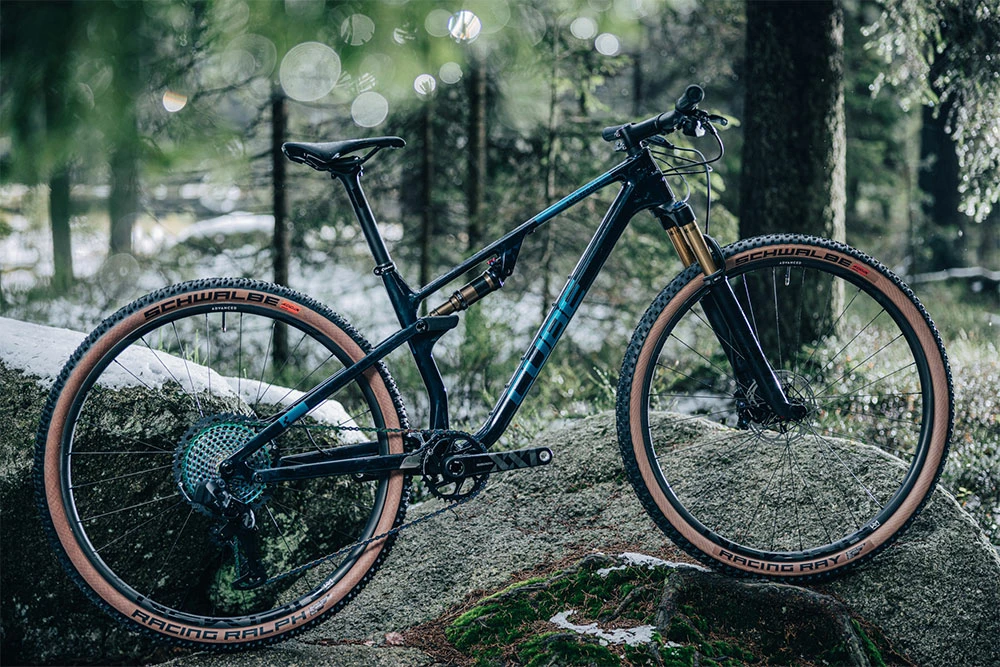

Cube AMS ZERO99 C:68X SLT 29 Liquidblue´n´blue

You’re only as good as your last race. That’s the reason the CUBE AMS ZERO99 C:68X SLT 29’s design and components are all intended to help you make the most of your training and skills, from the Fox suspension to the Sram AXS wireless transmission. They won’t let you down, so you can concentrate on chasing that podium finish.

---

Open 360° view

---

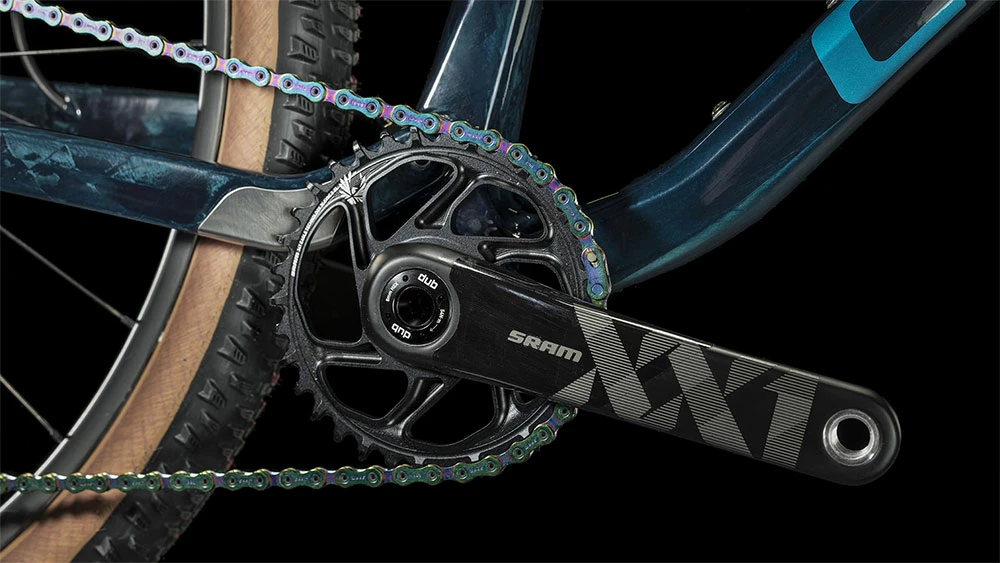

Pedigree counts in racing. That’s why, with the AMS ZERO99 C:68X SLT 29, CUBE has went for Fox Factory suspension components, to provide 100mm of ground-hugging travel front and rear. Sram’s XX1 Eagle AXS 1×12 serves up wireless shifting with unmatched precision, so you’ll never miss a gear again. Sram Level Ultimate Rainbow hydraulic disc brakes help keep your speed in check, and ultra-light Schwalbe Aerothan inner tubes ensure every ounce of your effort is translated into forward progress. Newmen carbon components – including a carbon wheelset – provide the finishing touches. The rest is up to you.

---

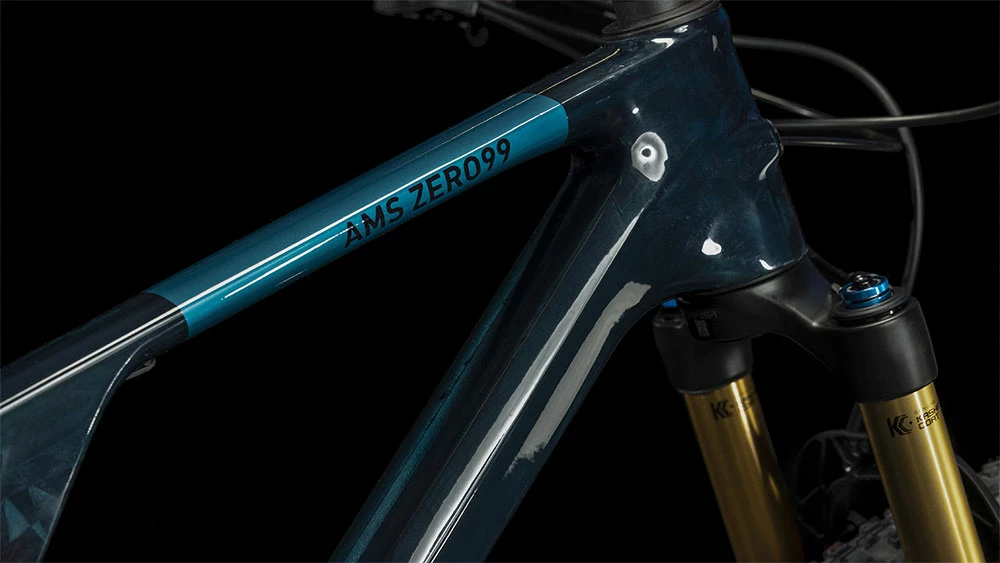

FRAME Cube AMS ZERO99 C:68X SLT 29

Fast is light, fast is comfortable, and fast is efficient. The AMS ZERO99 C:68X Race 29’s frame is crafted from the premium carbon and weighs in at a stunning 1600g, approximately. But it’s not just about low weight. Short chainstays with plenty of clearance for 2.25in tyres tuck the rear wheel in under the rider for efficient power transfer. Slender tubes help keep the ride comfortable, rather than harsh. There are angle adjustment inserts to allow fine-tuning of the head angle. And with 100mm of travel front and rear and a geometry that’s tuned for agility and pace, you’ve got everything you need to get to the head of the pack.

---

Technologies

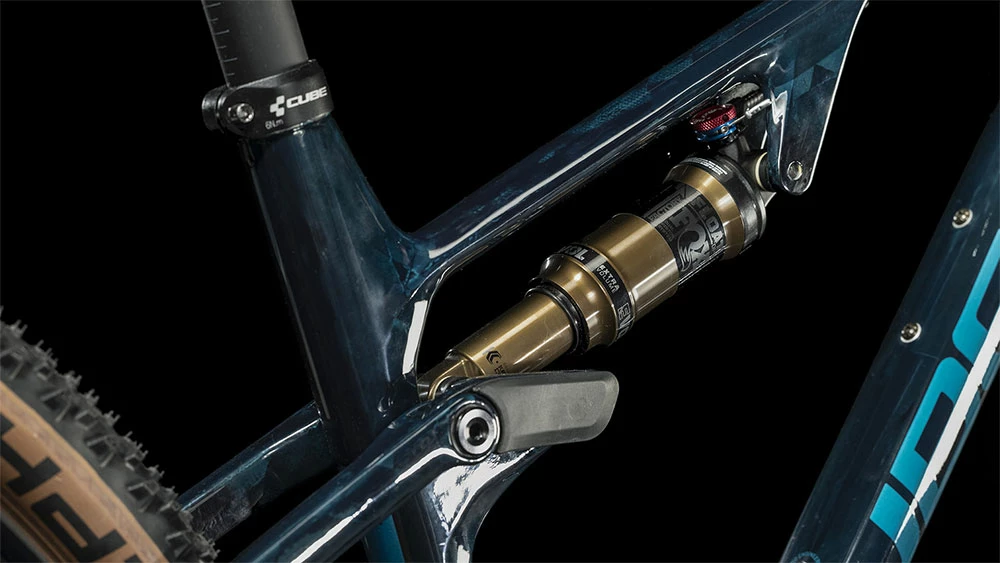

FSP4-Link
Suspension kinematics is vital to your bike’s performance. At CUBE they use the FSP 4-Link for all their full suspension bikes, with a chainstay pivot and four bar suspension design. It’s a proven method for creating active rear wheel travel independent of pedalling or braking forces. CUBE has carefully refine pivot placement for each bike depending on its intended use, so you can be sure of outstanding suspension performance on the trail.

Advanced Twin Mold
CUBE’s Advanced Twin Mold process for the C:62®, C:68® and C:68X® carbon frames uses two precisely manufactured forms. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

C:68X® Carbon Fiber Technology
Combining all the expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means CUBE can avoid bonded sleeves or inserts, too. It’s the new benchmark for light, stiff and strong.

Adjustable Headset Angle
When you’re harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That’s why the adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours…

Universal Derailleur Hanger
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it’s a standard part that is available anywhere.

---

Due to the COVID-19 pandemic and the resulting persistent disturbances in global supply chains, the illustrations and equipment information may differ from the actual bicycles.
The manufacturer reserves the right to replace components with components of equal quality.
